VKR EcoSands Systems
High-Value Materials.
Low-Volume Solutions.
Enabled by Mechanochemistry.
VKR EcoSands Systems develops high-intrinsic-value material formulations and translates them into practical products, processes and specialised engineering systems through mechanochemistry.
fixed
fixed
fixed
Products & applications
Products & Applications
We explore high-value material formulations designed to deliver meaningful industrial functionality at practical loading levels.
Agriculture & Crop Inputs
Nutrient and input formulations designed to deliver function at the plant rather than to the water table.
ExplorePharmaceuticals & Biomedical
Solvent-free activation routes, formulation work and biocompatible material systems.
ExplorePaints, Coatings & Surface Technologies
Pigment and additive systems where surface area and reactivity govern performance.
ExploreAdvanced Materials
Oxides, composites and functional powders with engineered defect and interface structure.
ExploreEnergy & Electrochemical Materials
Electrode and electrolyte material systems, and recovery from spent streams.
ExploreDefence, Forensics & Strategic Applications
Material systems where domestic capability is a requirement rather than a preference.
ExploreThe operating principle
High Value. Low Volume. High Functionality.
Our approach is to engineer formulations in which nanoscale or highly activated material characteristics translate into high surface area, high reactivity and useful functionality — while keeping material loading aligned with real industrial requirements.
Nano as an enabling regime, not as an end product. The objective is not to make nanoparticles because they are nanoscale. The commercial question is narrower and more useful: how can a small quantity of a highly functional material deliver meaningful industrial performance at a practical loading level?
The VKRE model
From Product Problem to Industrial Solution
VKRE combines platform technology, expert networks, consultation and special-purpose engineering to move from material exploration to usable products and systems.
Platforms
Ecotype Alpha and other mechanochemical platforms for controlled material exploration.
Network
Academic researchers, characterisation facilities and domain specialists.
Consultation
Technology translation that connects a discovery to an industrial use.
SPM engineering
Special purpose machines built around the process, at any stage of development.
The enabling science
Mechanochemistry: Engineering Matter Through Energy
Mechanochemical processing uses controlled mechanical energy to drive fracture, deformation, defect formation, surface activation, phase transformation and other non-equilibrium material changes.
VKRE is interested not only in particle-size reduction, but in the material states and functional properties that become accessible through controlled energy transfer.
The exploration platform
Ecotype Alpha
An Independent Dual-Drive Mechanochemical Platform
Ecotype Alpha is designed to create controllable and varied mechanical-energy environments for material exploration, activation and formulation development.
Independent drives. Sun wheel and jars are separately controlled, so transmission ratio becomes a process variable rather than a fixed property of the machine.
Along the gravity vector. Drive geometry works with gravity rather than across it, reaching forces of up to 100 G.
One batch, two purposes. The same run serves industrial production and laboratory prototyping.

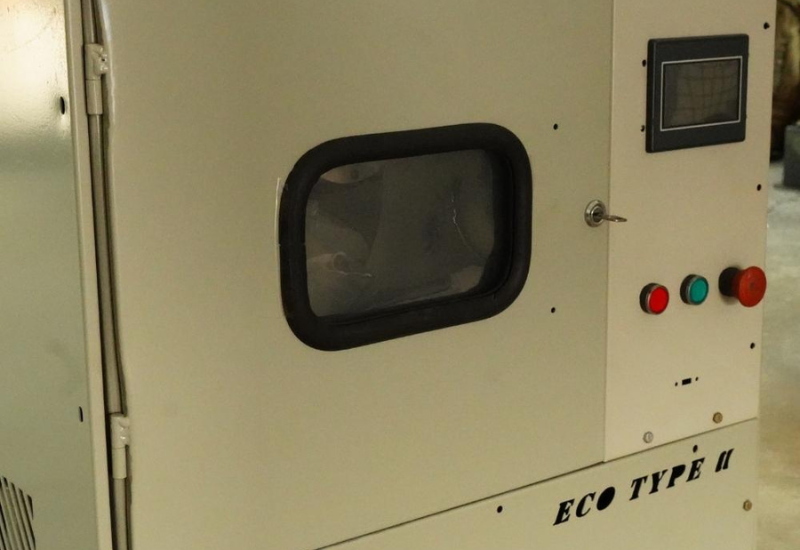

Ecotype Alpha in operation. Replace with the studio cut when it is ready.
The knowledge layer
Discovery Requires a Network
VKRE connects academic researchers, laboratories, characterisation capabilities, domain specialists, MSMEs and industrial partners to accelerate material discovery and product translation.
No single organisation holds all of the synthesis capability, characterisation instrumentation and application knowledge that a material problem requires. Coordinating that network is a capability in its own right.
Deployment sites and active research associations. Institution logos to follow once permissions are confirmed.
The engineering layer
When the Process Needs a Machine, We Engineer It
From automated laboratory operations and experimental rigs to pilot and manufacturing systems, VKRE designs Special Purpose Machines and systems around the process and product problem.
This is not only end-stage factory machinery. Much of the value arrives earlier — automating the repetitive experimental work that otherwise limits how many conditions a research programme can actually test.
Sustainability
Sustainable Product Manufacturing
Resource efficiency, lower material loading, reduced process complexity, waste reduction and cleaner mechanochemical pathways can contribute to more sustainable manufacturing. VKRE’s work is aligned with relevant SDGs and the broader objective of reducing resource and carbon intensity.
Industry, innovation & infrastructure
Indigenous platform technology and research infrastructure for materials development.
Responsible consumption & production
Lower material loading, solvent-free routes and recovery of value from waste streams.
Climate action
Reduced process energy and complexity relative to conventional thermal and wet routes.
Partnerships for the goals
An academic, industrial and institutional network built around shared capability.
Application-specific SDGs are noted on individual product pages where the link is justified. We do not publish carbon-credit quantities: that requires a recognised methodology, an established baseline, monitoring and project eligibility.
Get started
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
About VKRE
Building a Mechanochemistry-Led Product & Technology Ecosystem
VKR EcoSands Systems brings together mechanochemical platforms, material-development expertise, a collaborative research and industrial network, and special-purpose engineering capability — to move from material exploration to practical products and systems.
Who we are
Neither an equipment maker nor a materials supplier, exactly
We build mechanochemical platforms, and we use them ourselves to develop materials. We hold a network of researchers and characterisation facilities, and we engineer the machines a process needs when nothing off the shelf will do.
Individually, each of those is a business someone else already runs. Together they are the thing that is actually missing: an organisation that can take a material possibility all the way to a manufacturable product, and that has a commercial reason to care whether it gets there.
That is what a technology-translation organisation is, and it is what India has least of in this field.
What we do
Five capabilities, one chain
Material & product exploration
Investigating what a material can be made to do, and whether that translates into something an industry can use at a practical loading level.
Mechanochemical platforms
Ecotype Alpha and related systems, designed and manufactured by us, for controlled exploration of mechanical-energy environments.
Expert & characterisation network
Coordinated access to researchers, laboratories, instrumentation and domain specialists across the country.
Technology translation & consultation
The discipline of moving a result from paper to production — and of saying clearly when it will not move.
Special purpose engineering
Custom automated systems for laboratory, pilot and manufacturing stages, designed around the process rather than around a catalogue.
One continuous chain
Each capability is ordinary on its own. Held together, they close the gap where most material innovation in India currently stops.
Vision
To build a collaborative ecosystem in which mechanochemistry accelerates the discovery, development and industrial translation of high-value materials and products.
Mission
Enable researchers, MSMEs and institutions to explore material possibilities, validate products and engineer practical systems for their deployment.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Mechanochemistry
Engineering Matter Through Mechanical Energy
The scientific centre of everything VKRE does. Mechanical force, applied to solids under control, drives chemistry directly — without the furnace, the autoclave or the solvent recovery loop that conventional synthesis depends on.
What is mechanochemistry?
Chemistry driven by force rather than heat
In conventional synthesis you dissolve, heat, pressurise, react, separate and dry. Mechanochemistry collapses that into a single solid-state step: mechanical energy applied to solids drives the transformation directly.
The practical consequences are large. Energy consumption and cycle times fall. Solvent handling and recovery disappear, and with them a substantial part of the compliance burden. The process is modular and scales without changing its underlying chemistry.
The scientific consequence is more interesting: routes of this kind reach material states that wet chemistry does not readily produce.
Beyond size reduction
From Grinding to Material-State Engineering
A mill that only makes particles smaller is a mill. Our interest is in what else controlled energy transfer does to a solid.
Defects and strain
Deliberate lattice defects and retained strain change how a material conducts, catalyses and diffuses — often far more than particle size does.
Surface activation
Fresh, high-energy surface created mechanically rather than chemically, without an activation reagent to remove afterwards.
Phase transformation
Access to polymorphs and phases that are difficult or uneconomic to reach through thermal routes.
Amorphisation
Controlled loss of long-range order, which can transform solubility, reactivity and processing behaviour.
Interface control
Intimate mixing at the particle boundary — decisive in composites, electrodes and any multi-component system.
Grain refinement
Controlled crystallite size, which governs hardness, strength and diffusion behaviour in structural materials.
Energy landscapes
A population of states, not a single endpoint
Repeated mechanical-energy inputs do not move a material cleanly from one state to another. They create a complex population of transient and metastable states, some of which persist and carry useful function.
Established
That mechanical energy generates defects, strain, amorphous regions, surface activation and metastable phases is well documented across the mechanochemistry literature. So is the observation that process parameters change which of those dominate.
VKRE research hypothesis
Our working hypothesis — stated as a hypothesis, not as a result — is that a platform capable of a broader and more finely controlled range of energy environments can access a correspondingly broader population of material states, and that the relationship between process parameters and resulting states can be mapped systematically. Testing that is the research programme, not a claim about it.
Nano-regime & HVLV
Why highly activated states matter commercially
The scientific interest and the commercial interest happen to converge here, which is unusual and worth being explicit about.
High surface area
Reducing to the nano regime raises surface area by orders of magnitude. Where a reaction, an adsorption or a delivery mechanism happens at a surface, that is where the function lives.
High reactivity
Activated surfaces and defect-rich structures react faster and at lower temperatures. In catalysis, delivery and electrochemistry this is the entire performance argument.
Function at low loading
If a small quantity of a highly functional material achieves the required industrial performance, the economics change. High intrinsic value, low volume — the material is expensive per kilogram and inexpensive per unit of product.
We do not publish loading figures until they are demonstrated. The relationship between activation, loading and industrial performance is exactly what the work is establishing. Numbers will appear here when they come from documented trials, not before.
Research frontier
What is genuinely open
Mapping process parameters to material states
The relationship between transmission ratio, speed, media, atmosphere, duration and the resulting material state is not systematically mapped for most systems. Doing it requires many controlled experiments and access to characterisation across several techniques — which is a distributed research problem rather than a single-laboratory one. It is the most useful thing our network could produce.
Characterisation across techniques
SEM, XRD, Raman, TEM, XPS and EPR each show a different part of the picture, and no one facility has all of them free at once. A coordinated programme across university partners is the practical route to a dataset broad enough to learn from.
AI and data — a future layer
If the relationship between starting material, process parameters, characterisation output and end performance can be captured consistently, it becomes learnable. That is a reasonable ambition and a good reason to structure data collection carefully from the start.
It is not a claim that we have solved it, and we would not want the page read that way. The dataset comes first.
Join the Mechanochemical Exploration Network
If you run a research group, hold characterisation capability, or have a material system you want to put through a controlled energy environment, we would like to talk.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Ecotype Alpha
Independent Dual-Drive Mechanochemical Platform
Ecotype Alpha is designed to create controllable and varied mechanical-energy environments for material exploration, activation and formulation development. It is a research and product-development platform — not simply a grinder.
Ecotype Alpha in operation. Replace with the studio cut when it is ready.
Core innovation
Independent control of the drive motions
On a conventional planetary mill the jars are geared to the sun wheel, so the ratio between them is fixed at manufacture. On the Ecotype Alpha both are driven independently.
A wider parameter space
Any ratio within the sun wheel and jar speed envelope is programmable, in either direction. The ratio becomes an experimental variable rather than a fixed property of the equipment — which is what makes systematic exploration of the parameter space possible at all.
Energy transfer scales with ratio
The energy delivered to the charge is directly related to the transmission ratio. A continuously variable ratio therefore gives access to a continuous range of energy environments rather than a small number of discrete ones.
Non-repeating media paths
At non-integer ratios the media path does not close on itself, so impact sites keep changing rather than repeating a fixed pattern. The homepage model lets you see this directly as the ratio is varied.
On comparisons. We describe the architectural difference between independent and geared drives, because that is a matter of design rather than opinion. We do not publish claims of superior processing performance against specific competitor machines, because that requires controlled comparative experimental data and we would rather publish it than assert it.
What it enables
Six kinds of work the platform supports
Material activation
Generating high-energy surfaces and defect-rich structures as a deliberate outcome rather than a side effect.
Controlled exploration
Systematically varying process parameters to understand what each one does to the resulting material state.
Formulation development
Developing multi-component formulations where mixing quality at the particle interface determines function.
Phase & structure modification
Driving polymorph and phase changes, and controlling the degree of amorphisation.
Defect engineering
Introducing lattice defects deliberately to raise catalytic activity or ionic conductivity.
High-reactivity research
Producing and studying materials whose reactivity is the property of interest.
Research to product
The path a material takes
Evidence
The evidence base for the platform is our own characterisation output: SEM imagery of starting and processed material, and the XRD, Raman, TEM, XPS and EPR data being built up through the research network.
This section will carry that data as it becomes available and documented. Until then it carries an honest placeholder rather than a claim.
| Type | Independent dual-drive mechanochemical platform (planetary architecture) |
|---|---|
| Drive architecture | Sun wheel and jars driven independently |
| Transmission ratio | Continuously programmable, clockwise and anti-clockwise, across the sun wheel and jar speed range |
| Peak force | Up to 100 G, acting along the gravity vector |
| Working particle regime | 100–500 nm preferred and industry-workable; below 100 nm achievable where the application requires it |
| Force modes | Compression, shear and torsion, applied in combination |
| Process modelling | Discrete Element Method simulation of media and charge behaviour |
| Materials handled | Metal alloys, ceramics, oxides, composites, biomaterials, polymers |
| Batch use | Industrial production and laboratory prototyping from the same run |
| Sample handling | Automated handling available; special purpose configurations designed to requirement |
| Manufacture | Designed and built in India — Faridabad, Haryana |
| Support | Installation, operator training, SOPs and multi-year support included |
Jar volumes, motor ratings, speed envelopes and electrical requirements are configured per application. Ask for the technical datasheet for the configuration you need.
Ownership
What comes with the platform
Installation
Site preparation guidance, commissioning and acceptance testing at your facility.
Training
Hands-on operator and researcher training on your own material system, not a generic demonstration.
SOPs
Written standard operating procedures tuned to your applications.
Multi-year support
Service from Faridabad. Domestic spares, rupee pricing, engineer on site in days.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Products & applications
From Material Innovation to Industrial Products
This page answers the only question that finally matters: what can this become? Six application domains, the material approach behind each, and an honest statement of how far along it is.
Core principle
High intrinsic value, low volume
Nanoscale or highly activated characteristics are useful only when they translate into practical industrial loading and performance. A material that works beautifully at laboratory concentration and uneconomically at production concentration has not solved anything.
So the design target is set the other way round: begin from the loading level the industrial process can actually accommodate, and engineer the material state that delivers the required function at that level.
Application domains
Six domains, and where each one stands
Every card states its stage plainly. Exploration means we are studying it. Validation means characterisation is underway. Prototype means a formulation exists and is being tested. Nothing here is described as commercial until it is.
Agriculture & Crop Inputs
- ProblemConventional inputs are applied in bulk and largely lost to runoff, leaching and the soil column before reaching the plant.
- ApproachMechanochemically activated nutrient and carrier systems, and bio-enabled formulations designed for controlled release.
- Intended functionalityMore of the applied input reaching the plant, at a lower application rate.
- SDG linkSDG 2, SDG 12
Pharmaceuticals & Biomedical
- ProblemSynthesis times and solvent handling constrain how many candidates a discovery programme can test, and poorly soluble compounds limit formulation options.
- ApproachSolvent-free mechanochemical routes, API micronisation, co-crystal formation, functional excipients and biocompatible material systems including nano-crystalline hydroxyapatite.
- Intended functionalityShorter synthesis cycles, improved solubility behaviour and biocompatible material systems for medical and dental use.
- SDG linkSDG 3, SDG 12
Paints, Coatings & Surface Technologies
- ProblemCoating durability, coverage and protective performance are limited by pigment and additive behaviour at the surface.
- ApproachActivated pigment and additive systems where high surface area and reactivity govern how the coating performs, not only how it looks.
- Intended functionalityImproved durability and coverage at practical additive loading.
- SDG linkSDG 9, SDG 12
Advanced Materials
- ProblemStructural and functional performance is often limited by grain structure, defect population and interface quality rather than by composition.
- ApproachNano oxides, functional powders, thermoelectric compositions, specialty ceramics and mechanically alloyed composite systems with engineered defect structure.
- Intended functionalityMaterials whose properties are set deliberately through processing rather than inherited from the feedstock.
- SDG linkSDG 9
Energy & Electrochemical Materials
- ProblemSolid-state battery performance is fundamentally an interface problem, and recovering value from spent cells is limited by process cost.
- ApproachSolid-state electrolytes, cathode and anode material systems, electrocatalysts, and mechanochemical recovery routes for spent battery material.
- Intended functionalityBetter interface quality in electrode systems, and economically viable recovery from waste streams.
- SDG linkSDG 7, SDG 12
Defence, Forensics & Strategic Applications
- ProblemMaterials in this category carry a sovereignty requirement that an imported supply chain cannot satisfy.
- ApproachDefence coatings, armour composite systems, alloy development and specialist material work conducted with national laboratories.
- Intended functionalityDomestically developed and produced material systems for strategic use.
- SDG linkSDG 9
What you will not find on this page. Performance percentages, market-size figures, carbon-credit quantities and commercial success numbers are absent deliberately. They will appear when there is documented evidence behind them — and when they do, they will be worth reading.
How a product develops
Four ways a programme starts
You have a product problem
A performance target you cannot currently meet. We work backwards from the requirement to a material approach — and tell you honestly if mechanochemistry is the wrong route.
You need a material supplied
You know the specification. We produce it on our own platforms and supply it, with characterisation data.
You want the programme run
Our KPO model runs your materials development as an outsourced function, structured to keep capital expenditure down.
You want the capability in-house
An Ecotype Alpha configured to your application, with the SPM systems the process needs around it.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Network & expertise
The knowledge layer around the platform
A machine on its own does not develop a product. What determines whether a material becomes something useful is access to characterisation, domain knowledge and an industrial environment willing to test it. Coordinating that is a capability, and it is the reason to work with us after the equipment is installed.
Four networks
What the network is made of
Academic network
Researchers, university departments and research groups working across materials science, chemistry, physics, biotechnology and engineering. Several already run our platforms, which means a new user can be introduced to someone already doing comparable work rather than starting cold.
Characterisation network
Access to testing and characterisation capability across techniques — SEM, XRD, Raman, TEM, XPS, EPR and others. Very few organisations hold all of these in-house or free at the moment they are needed, which is precisely why a coordinated network beats an individual facility.
Domain network
Specialists in chemistry, materials science, formulation, process engineering and specific applications. Material development fails more often on application knowledge than on synthesis, so this is where a promising powder becomes a usable product.
Industry & MSME network
Manufacturers with real product problems, production environments where a formulation can be validated under working conditions, and routes to market for what emerges. A material that has never left a laboratory has not been tested.
Our role
Curate, connect, advise, translate
The network is a capability, not a directory. Nobody benefits from a list of names.
- CurateKnow who is genuinely working on what
Maintaining an accurate picture of active research, available instrumentation and real industrial problems — which requires continuous contact rather than a database.
- ConnectIntroduce the right two parties
A research group with a material and no application, and a manufacturer with an application and no material, are frequently one introduction apart and unaware of each other.
- AdviseSay what is likely to work
Consultation drawn from having seen where these processes succeed and where they stall. Including telling someone their idea will not work, which saves more money than any other service we offer.
- TranslateCarry it from paper to production
The step where most Indian materials research currently stops. Moving from a published result to something manufacturable is a distinct discipline, and it is what our consultation and SPM capability exist to do.
Current associations
Where the network already reaches
Platform deployments and active research associations across national institutes, CSIR laboratories, a defence materials laboratory and universities.
If you are evaluating the platform or a collaboration, we will introduce you to an existing user in your discipline. That conversation is worth more than any specification sheet we could send.
Deployment sites and active research associations. Institution logos to follow once permissions are confirmed.
Research collaboration
C3PC Research Foundation
C3PC Research Foundation is a non-profit working on childhood cancer — accelerating paediatric cancer research, supporting the families carrying it, and raising awareness of early detection.
Nanoparticle science has real work to do in that field: targeted delivery, early-stage diagnostics and treatment that spares healthy tissue. Our collaboration supplies the material science side of that effort.
It is a small part of what we do commercially and a disproportionate part of why the technology is worth building.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
SPM systems
Special Purpose Systems for Research, Development & Manufacturing
Custom automated mechanical systems, engineered around the process problem — at every stage of the journey, not only after commercialisation. Much of the value arrives far earlier than most people expect.
Three stages
Where custom engineering earns its cost
Research automation
Custom automated mechanical work for laboratory development — dosing, feeding, mixing, milling, transfer, sampling, coating, controlled handling and repetitive operations. A research programme is usually limited by how many conditions a person can physically run, not by ideas. Automating that repetition multiplies the experiments a group can complete, which is the single most useful thing engineering can do for a research team.
Pilot & process development
Custom rigs and systems that reproduce and control a validated process at larger scale. This is where most promising material work dies — the laboratory result is real, and nothing exists to run it at a scale that proves it is manufacturable. Purpose-built pilot equipment is the bridge across that gap.
Manufacturing systems
When a product or process requires a dedicated machine or production line, we design the special purpose system around the validated process. Because the same team has usually been involved from exploration onwards, the machine is built for what the process actually does rather than for what a specification document says it does.
Core principle
We engineer the machine around the problem — not the problem around a machine
The usual sequence is backwards. A team buys the closest available equipment, then adapts the process to what that equipment can do, and quietly abandons the parts of the idea that will not fit. The compromise is invisible because it happens early.
We build the Ecotype Alpha ourselves, so designing mechanical systems to a process requirement is the same discipline we already practise daily rather than a new service line.
That also means the conversation can start before you know exactly what you need. Often the useful first question is not what machine to build, but which part of the process is worth automating at all.
Typical scope
The kind of work we take on
Dosing & feeding
Controlled, repeatable introduction of powders and additives at laboratory or production scale.
Mixing & milling
Process-specific mixing and milling arrangements where a standard configuration will not do the job.
Transfer & handling
Moving material between process stages without contamination, segregation or operator exposure.
Sampling
Automated sampling for characterisation and quality control, at defined intervals and conditions.
Coating
Controlled surface treatment and coating operations built around the formulation.
Repetitive operations
Any experimental sequence a researcher currently performs by hand, many times, with variance.
Pilot rigs
Scaled systems that hold a validated process stable under conditions closer to production.
Production lines
Dedicated manufacturing systems designed around a proven process and its real constraints.
Start with the process, not the machine. Tell us what the operation has to achieve, what limits it today and where variance creeps in. The specification comes out of that conversation. Discuss a requirement
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Academia
Research on industrial-grade materials, not lab-grade ones.
The gap between a published result and a manufacturable material is where most Indian nanotechnology research currently stops. A dual-drive platform in your own department closes it — and pays for itself in ranking, patents and industry-sponsored work.
What an installation delivers
Four returns on one platform
NIRF position
Research output, patents, sponsored projects and industry engagement all feed the ranking framework. A shared platform moves several of those indicators at once rather than one.
Publications and patents
Our platforms have supported patents and papers in international journals in materials science. A continuously variable transmission ratio widens the experimental parameter space available to a research group, which is what makes systematic exploration possible.
Cross-department use
One platform serves Chemistry, Physics, Biotechnology, Biochemistry, Environmental Science and Engineering. Shared capital, shared facility, several departments funded by one acquisition.
Industry sponsorship
Departments with industrial-grade capability attract industry-sponsored projects. That is the durable outcome — the platform becomes a revenue line, not only a cost.
Funding routes
How institutions usually pay for it
Most departments do not fund a platform of this class from internal budget, and they do not need to. These are the routes we see working, in rough order of fit.
DST-FIST
The Department of Science and Technology’s Fund for Improvement of S&T Infrastructure is the most direct route for a shared research facility of this type. We help structure the proposal around the platform as departmental infrastructure rather than a single-investigator instrument.
NEC and NECTAR
For institutions in the North Eastern region, the North Eastern Council and NECTAR run capital and capability-building routes that suit a shared materials facility well.
BIRAC
Where the intended work is biotechnology-adjacent — biomaterials, delivery systems, diagnostics — BIRAC routes support both the capability and the translational programme around it.
MSME schemes and CSR
Where a platform serves regional industry as well as the institution, MSME technology-centre schemes and corporate CSR funding both become available. This route also brings the industry partner in from day one.
We write the technical annexure with you. Specification, justification, application mapping to your existing research strengths, and the case for shared departmental use. Ask for the funding-routes note and a draft proposal structure for your institution. Request the note
Track record
Deployments and associations
Platforms in service, and research associations where the work is ongoing.
Ask us to connect you with an existing user in your discipline. A conversation with a department already running the platform is worth more than any specification sheet we can send you.
Deployment sites and active research associations. Replace with institution logos once permissions are confirmed.
The bigger idea
Academia, MSMEs and government, moving in sync
The college or institute develops the nanotechnology and makes it workable for small manufacturers. The MSME gets a domestic material it can actually buy. The government keeps the forex, the jobs and the revenue.
Nobody in that chain is doing anything they were not already trying to do. They are simply doing it on one platform instead of three separate ones. That alignment is what we are building, and the machine is how we start the conversation.
Three groups, one platform
The argument only works if all three move together
Academia develops the material. Industry manufactures with it. Government keeps the value onshore. Each one is currently solving this alone.
Academia
Research on industrial-grade materials, and the funding routes that pay for the platform.
Industry & MSME
A domestic source for the nanomaterials you currently import, priced in rupees.
OpenAlso forGovernment
Forex retained, supply chains held onshore, and a technology India can export.
OpenExplore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Industry & MSME
Buy your nanomaterials in rupees, not dollars.
Most Indian manufacturers using advanced materials import them — paying freight, duty, distributor margin and currency risk on top of the price, then waiting on a supply chain they do not control. We make the same materials here, to your specification, with the people who developed them in your time zone.
The honest comparison
What changes when the supplier is domestic
Not a marketing claim — these are the line items that actually move on your purchase order.
| Importing today | Domestic supply | |
|---|---|---|
| Price basis | Ex-works price plus freight, duty, distributor margin | Ex-works price, quoted in rupees |
| Currency risk | Carried by you on every order | None |
| Lead time | Shipping cycles, customs clearance, port delays | Road freight from Faridabad |
| Minimum order | Set to make export economics work | Set to make your production run work |
| Specification | What the supplier already makes | What your application needs |
| Technical support | Distributor, then an email queue abroad | The team that developed the material |
| Continuity | Exposed to trade policy and geopolitics | Onshore, with visibility of the production line |
| Trial quantities | Expensive and slow to obtain | Sample first, commit after it works |
What you gain
Four things that reach your bottom line
Access to materials you could not get before
Fine nano-scale materials have largely been the preserve of manufacturers big enough to absorb import minimums and lead times. A domestic source removes the size barrier. If your production run needs twenty kilograms rather than two hundred, that is a conversation rather than a refusal — and you can trial a sample before committing capital to it.
A materially better cost position
Removing freight, duty, distributor margin and currency exposure changes the landed cost before any negotiation begins. Beyond the invoice, nano-scale inputs frequently reduce the quantity of material required, cut process energy and reduce scrap — so the saving compounds through the line rather than sitting on one purchase order.
A supply chain you can actually see
You can visit the plant that makes your material. You can call the person who formulated it. When a batch behaves unexpectedly, the response is an engineer travelling by road, not a support ticket in another time zone. For anyone who lived through the last few years of supply disruption, that visibility is worth as much as the price.
A better product for your customer
This is the part that grows revenue rather than protecting margin. Nano-scale materials make products stronger, lighter, more durable, more effective and longer-lasting. That is how a component supplier moves up a tier, how a formulator opens a premium segment, and how a manufacturer competes on specification instead of only on price.
Ways to work with us
Four routes, depending on where you are
Buy the material
You know what you need. We produce it to specification and supply it — nano oxides, silica, biomaterials, functional powders, custom systems.
Develop the process
You have a product target and no route to it. We design the mechanochemical process, prove it, and specify what is needed to run it at your volumes.
Outsource the programme
You want the capability without the headcount. Our KPO model runs your materials programme as an outsourced function, structured to keep capital expenditure down.
Own the platform
Volumes justify bringing production in-house. An Ecotype Alpha configured to your application, installed, with operators trained and SOPs written.
How a first engagement runs
Sample first. Commit later.
No manufacturer should redesign a product around a material they have not tested. The sequence is deliberately built so your risk stays small until the material has proved itself on your line.
- Step 01Tell us the constraint
Not the material — the problem. Cost, strength, purity, throughput, shelf life or a specification you cannot currently meet. We will say honestly if mechanochemistry is the wrong route.
- Step 02Sample against your target
We produce a trial quantity to the agreed specification, with characterisation data, for you to test on your own process.
- Step 03Trial on your line
You run it in production conditions. We adjust the material to what the line actually does, rather than what the datasheet predicted.
- Step 04Lock the specification
An agreed specification, batch consistency criteria and a quality protocol you can audit.
- Step 05Supply, then scale
Regular supply with agreed lead times — and a conversation about whether owning a platform makes sense once volumes justify it.
Capital support
You may not have to fund this alone
Several central and state schemes exist to help MSMEs adopt advanced technology, upgrade quality systems and access credit for capital equipment — and technology-centre routes exist where a shared facility serves a whole industrial cluster rather than a single firm.
Most manufacturers we speak to either do not know which scheme applies to them or have been put off by the paperwork. We help identify the right route and prepare the technical case, because a scheme that funds your capability also builds our installed base.
Ask for the industry funding-routes note and we will map the schemes currently open to a firm of your size and sector.
Who this is for
Sectors where the case is already proven
If your product is made of something, this applies. These are the sectors where we have delivered work or hold an active pipeline.
Coatings & paints
Pigments and additives that change durability and coverage, not only colour.
Construction materials
Nano-modified cementitious systems — lighter, stronger, better insulated.
Pharma & formulation
API micronisation, functional excipients, solubility enhancement.
Agri-inputs
Nutrient carriers and controlled-release formulations that reach the plant.
Battery & energy
Electrode materials, solid-state electrolytes, recovery from spent cells.
Metals & alloys
Mechanically alloyed systems and composite powders for structural parts.
Electronics
Dielectric materials, conductive pastes, semiconductor powders.
Recycling
Recovering high-value material from by-products and waste streams.
Three groups, one platform
The argument only works if all three move together
Academia develops the material. Industry manufactures with it. Government keeps the value onshore. Each one is currently solving this alone.
Academia
Research on industrial-grade materials, and the funding routes that pay for the platform.
OpenIndustry & MSME
A domestic source for the nanomaterials you currently import, priced in rupees.
Government
Forex retained, supply chains held onshore, and a technology India can export.
OpenExplore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Government & public institutions
A technology India can export instead of import.
Nanomaterials sit upstream of almost every manufacturing sector — defence, pharmaceuticals, energy, construction, agriculture, electronics. India currently buys both the materials and the equipment that makes them. Building that capability domestically serves several standing national priorities at once, and the platform to do it already exists and is already installed in public institutions.
National outcomes
Six things that change when this is made here
Foreign exchange retained
Every kilogram of imported nanomaterial and every imported planetary mill is foreign exchange leaving the country for a category India is fully capable of producing. Domestic manufacture converts that outflow into domestic turnover, and the equipment itself becomes an export line rather than an import line.
Supply chains held onshore
Advanced materials are a chokepoint input. When they arrive from a single foreign source, that is a strategic position rather than a procurement decision — and recent years have made the cost of learning that the hard way very clear. Domestic capability puts the chokepoint inside the country.
Global competitiveness for Indian manufacturers
An MSME paying import prices for its key input cannot beat the manufacturer next door to that supplier. Give Indian firms domestic materials at domestic cost and they compete on specification and price in export markets, not only at home.
Employment and cluster capability
Materials manufacturing creates skilled technical employment — operators, process engineers, quality staff, service teams. Positioned within an industrial cluster, one shared facility raises the technical ceiling of every firm around it rather than a single company.
Strategic and defence self-reliance
Defence materials carry a sovereignty requirement that imported equipment cannot satisfy. Our platforms are already in service at national defence and CSIR materials laboratories, which is the practical form indigenisation takes in this category.
Research that reaches production
Public money funds a great deal of Indian nanotechnology research that stops at the paper, because it was done on lab-grade material that will not survive a production line. Industrial-grade capability in public institutions converts that spend into patents, licensing and manufactured product.
Already in the public system
This is not a proposal. It is a deployment.
Ecotype Alpha platforms are in service at national institutes, a CSIR laboratory and a defence materials laboratory, supporting published research and patent filings.
Any programme discussion can begin with a conversation with an existing public-sector user rather than with our sales team. We will make that introduction.
Deployment sites and active research associations. Institution logos to follow once permissions are confirmed.
Policy alignment
Where this fits existing agendas
We are not asking for a new programme. The work maps onto priorities and instruments that already exist at central and state level.
Advanced materials and the capital equipment that produces them are precisely the category self-reliance programmes are designed to bring onshore. This is a deep-tech manufacturing capability with an Indian design, an Indian manufacturing base and an export path — not an assembly operation for imported subsystems.
Instruments that fund shared departmental research infrastructure are the most direct route for a public institution to acquire the platform. We help structure the technical case for a facility serving several departments rather than a single investigator, which materially improves both the proposal and the utilisation.
Where a facility serves an industrial cluster, technology-centre and MSME upgradation routes apply. One platform positioned in a cluster raises the capability of every firm around it — a far better return on public capital than the same amount spread thinly across individual subsidies.
Armour composites, defence coatings and alloy development all depend on materials capability that cannot credibly sit offshore. Existing deployment in a national defence materials laboratory demonstrates the platform in exactly this role.
Mechanochemistry is a solvent-free, lower-energy route to solid-state materials, and the same technology recovers high-value material from industrial waste and spent batteries. Both sit squarely inside circular-economy and emissions commitments.
Every country with the same import-dependency profile is a market for an Indian-built dual-drive platform. Import substitution is the near-term outcome; the longer-term one is a technology export in a category India does not currently export.
Scheme names, eligibility criteria and funding windows change. We confirm current status before any formal submission.
Ways to engage
What a programme can look like
Public laboratory procurement
Platforms for national institutes, CSIR laboratories and defence research establishments, with installation, training and multi-year domestic support.
State cluster facility
A shared materials facility placed inside an industrial cluster, serving the MSMEs around it and operated on an access model.
Translation centre
A joint academia–industry centre where publicly funded research is developed to industrial grade and licensed to manufacturers.
Strategic materials programme
A defined indigenisation programme for a named material currently imported, with milestones and a domestic production route at the end.
We have done this work before. We have prepared state-level outreach and programme proposals, and structured funding cases for public institutions. If a department or state agency wants a written concept note for a specific district, cluster or institution, we will prepare one. Request a concept note
The structural point
Three groups already trying to solve this, separately
Academia is researching nanomaterials on lab-grade inputs. MSMEs are importing the industrial-grade version at a price that limits who can use it. Government is funding both sides while the foreign exchange, the manufacturing employment and the tax revenue land in another economy.
None of them is doing anything wrong, and none of them needs to change direction. They need to be on one platform. That alignment is the whole proposition — the machine is simply how the conversation starts.
Three groups, one platform
The argument only works if all three move together
Academia develops the material. Industry manufactures with it. Government keeps the value onshore. Each one is currently solving this alone.
Academia
Research on industrial-grade materials, and the funding routes that pay for the platform.
OpenAlso forIndustry & MSME
A domestic source for the nanomaterials you currently import, priced in rupees.
OpenGovernment
Forex retained, supply chains held onshore, and a technology India can export.
Explore. Develop. Translate.
Whether you are a researcher, MSME, government organisation or industrial partner, VKRE can help connect a material opportunity to the people, platform and engineering required to explore it.
Investors
High-value materials, and the platform that makes them.
VKRE is a mechanochemistry-led product development and technology-translation business: an independently developed dual-drive platform, a materials and formulation programme built on it, a research and characterisation network around it, and special-purpose engineering behind it. Manufactured in India, sold to research institutions and manufacturers.
platform, network, consultation, SPM
the gravity vector
incl. IITs, CSIR, DRDO lab
one installed base
The thesis
Four things have to be true. All four are.
The architecture is genuinely differentiated
Independently driven sun wheel and jars give a continuous transmission range where every competing planetary mill — Retsch PM 400 class, Fritsch class — is geared to a ratio fixed at manufacture. Energy delivered to the charge scales with that ratio, so a continuous range gives access to a correspondingly wider range of energy environments. This is an architecture difference rather than a feature difference. We describe it as such and do not publish comparative performance claims until controlled experimental data supports them.
The market is being served by import
Indian research institutions and manufacturers currently buy this class of equipment and the resulting nanomaterials from Europe. Every unit carries freight, duty, distributor margin, forex exposure and a service relationship measured in shipping cycles. We compete on all five at once, before we get to the technical argument.
One sale creates several
The platform is the entry point. Behind it sit materials supply, process development, KPO programmes and IP licensing — sold to the same institutions, repeatedly, once the platform is installed and the relationship exists. Hardware acquires the customer; the annuity is what compounds.
Policy is pushing the same direction
Import substitution, indigenous defence materials, DST-FIST capital routes for research infrastructure and MSME technology schemes all subsidise the exact transaction we are trying to close. We are not asking the market to change behaviour against the grain of policy.
Business model
Six revenue lines, one installed base
Platform sales
Ecotype Alpha units, configured per application, with installation, training, SOPs and multi-year support. Institutional and industrial buyers.
Materials supply
Nanomaterials produced on our own platforms and sold to specification — oxides, silica, biomaterials, custom systems. Recurring, consumption-linked.
Process development
Route design and proving for manufacturers with a material target and no way to reach it. Project-based, high margin, pipeline into materials supply.
Knowledge Process Outsourcing
Running a client’s nanomaterials programme as an outsourced function. Retainer economics, deep customer lock-in.
IP licensing
Licensing generated process and material IP to industrial partners who want to run it themselves at scale.
Service and consumables
The Faridabad unit supports the installed base directly — spares, jars, media, recalibration and upgrades in rupees.
Why us
What is hard to copy
Architecture
A competitor cannot add an independent jar drive to a geared machine. Matching us means a new platform, not a firmware update.
Manufacture
Our own unit in Faridabad. We control cost, lead time and configuration — and service arrives by road, not by air freight.
Institutional trust
Already installed at IITs, a CSIR laboratory and a DRDO materials laboratory. In this market the reference list is the sales cycle.
Application depth
Patents and published papers behind the platform across materials science, plus the network and SPM layers. We sell the result, not the machine.
The raise
What the capital does
We are raising to convert a proven platform and a validated institutional pipeline into manufacturing throughput and applications capacity.
Manufacturing capacity
Scale the Faridabad unit from build-to-order to a held production line, with the working capital to carry inventory.
Applications team
Scientists and applications engineers — the function that converts a platform sale into a materials and services relationship.
Materials production
Own-account production capacity so materials supply stops competing with demonstration units for machine time.
Market expansion
Institutional coverage across India, then export into markets with the same import-dependency profile.
Editor’s note — remove before launch
Financial detail is deliberately not published here. Revenue to date, units shipped, order book, raise size, valuation expectation and the use-of-funds split all sit in the brief, released on request through the form below.
This is the right structure for an early conversation: a public page that qualifies the fund and a gated brief that gives them the numbers. If you decide to publish headline figures instead, the four metric tiles at the top of this page are where they go.
Request access
The investor brief
Financials, order book, unit economics, competitive analysis, IP position and the raise structure. Sent under NDA to qualified investors.
Who we are speaking with: deep-tech, industrial technology, climate and materials funds, domestic and international, alongside strategic investors in specialty chemicals and equipment.
Response time: we come back within two working days, usually with a call rather than a document.
Ready for the numbers?
The full brief covers financials, order book, unit economics, IP position and the raise structure — released under NDA.
Collaborate
Tell us what you are trying to make.
Four routes, because a research group, a manufacturer, a government department and an engineering enquiry each need a different first conversation. Pick the one that fits and the enquiry reaches the right person directly.
Choose a route
Four ways to start
Academic / research collaboration
Platform acquisition, joint research, characterisation partnership or a proposal you want structured. Funding routes included.
For academia Route 02MSME product development
A product problem, a material you currently import, or a process that will not scale.
For industry Route 03Government / institutional programme
Public laboratory procurement, a cluster facility, a translation centre or a strategic materials programme.
For government Route 04SPM / engineering requirement
An operation that needs automating, a pilot rig, or a production system built around a validated process.
For engineeringDirect
info@vkre.co.in — general and platform enquiries
investors@vkre.co.in — investor relations
+91 98218 24411 — Director, Sales
Corporate office
VKR EcoSands Systems
Palam, New Delhi 110045
India
Manufacturing & service
152, Block-B, Sai Complex
Hanuman Nagar, Sector 87
Faridabad, Haryana 121002
India
Before you write
Three things that make our reply more useful
The problem, not the material
Tell us what has to be achieved. We will tell you honestly whether mechanochemistry is the right route — sometimes it is not, and that is a useful answer too.
The binding constraint
Cost, purity, particle size, throughput, shelf life, supply security or an approval timeline. Knowing which one binds changes the entire answer.
Where you are today
An idea, a laboratory result, a failing pilot or a production line that needs improving. Each is a different first step.
